Immokalee Stormwater Master Plan Update
The first objective of this project was to conduct a comprehensive update of the XP-SWMM model originally developed in 2004. The updated model was then used to evaluate nine (9) proposed projects and subprojects to improve the stormwater management system. Design storm simulations for the 10- and 25-year/3-day storm events were utilized. Water quality improvements from the proposed ponds were also evaluated using the Harvey-Harper Method.
- CLIENT
- Collier County(sub-consultant to Robau & Associates)
- YEAR
- 2016-2018
- APPLIED SKILLS
- H&H Modeling: Data processing, conceptualization & setup
Design storm simulations
Level of service
Scenario Evaluation - CONSULTING AREAS
- Surface water management
Water quality studies - SOFTWARE
- XP- SWMM, SWMM5 to SHP, ArcMap, ArcHydro, Fill Sinks Plus.
Specifics
The model update included:
- New sub-basin and flow paths delineation based on new topography data and by using ArcHydro tools, as well as aerial imagery and permit information.
- New landuse and soil data used to determine the curve number (CN) for infiltration determination.
- New runoff parameters (area, % impervious, width, and slope).
- New conduit parameters based on the County geodatabase, permit information, other models for the area, and field visits.
Outcome

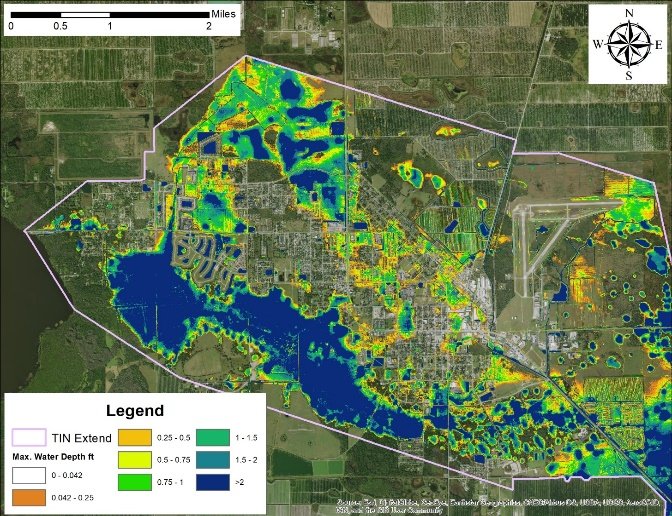

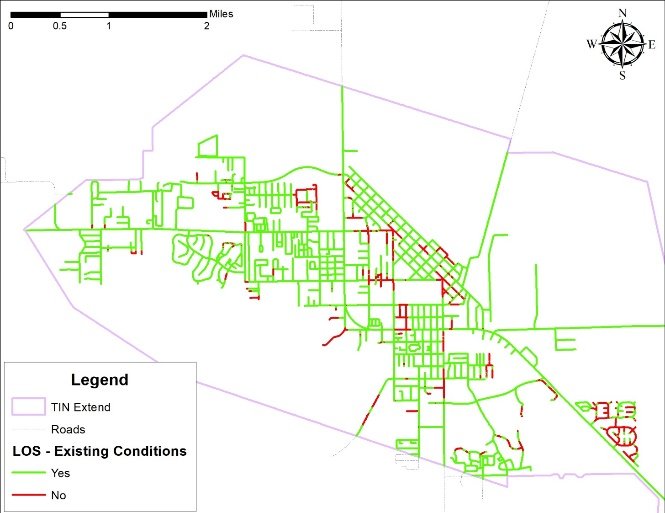

The updated model was used to evaluate the stormwater management system in Immokalee and to estimate the potential effects of the proposed projects to reduce the extent and duration of flooding in the project area. Flood inundation maps and road Level of Service (LOS) compliance maps were produced for this evaluation. The proposed designs were adjusted according to the model results in order to optimize performance.
